Brand Name : | Boente |
Model Number : | BC071 |
Certification : | CE/RoHS/UL/3C/SASO |
Price : | USD 25-45 per unit |
Payment Terms : | T/T, L/C,T/T, Western Union, MoneyGram, Paypal |
Delivery Time : | 7-10 days |
Desktop Hidden Slip Up Cover Table Cable Cubby with 1.5 Meter Length Connection Plugs
Introduction:
As the development of modern technology, people have higher
requirements for intelligent office. Safety and saved space is the
most important request of the tabletop socket. BC series desktop
flip up cable cubby is a compact multi-funcional tabletop cable
socket box, it contain with power modualr and data connection
cables, all connection plus are hidden over a slip up surface
panel. User just to pulling up the cable plugs when using and slip
cover after used.
Feature:
1. Aluminum alloy wired drawing top panel, elegant fashion, simple
appearance not easy to grind flower
2. Anode oxidation process, anti-scratch, anti-dusty and anti-rust,
upscale elegance
3. Save more space,after using you can close it with the cover
panel to keep it anti-dusty, and the table tiny
4. Easy installation, just cut out a square hole and install the
socket on the table directly
5. Modularization design, all connection ports can be change
easily, high flexibility
6. Round corner design, protect user be scratched by the surface
corner
7. Panel with 5mm fine aluminum wire drawing craft, modules are
more enough and it contains the most commonly used audio and video
modules
8. Panel is flip-up design, a variety of signal can be easily use
9. The module using embedded design, surfaces smooth , different
configuration modules can be customized according to requirements
10. Compact with 6 pcs connection cable plugs, the cable length is
1.5 meter
11. Surface is high-grade scratch-resistant, bottom panel on the
configuration corresponding to the modules, no soldering required
Selling Point:
1. Sample order and customized made is available accordingly
2. Cable length with diffference is available based on the quantities
3. The av connection plug can be changeable accordingly
4. Supply with high quality A=A kraft paper cartons
5. With CE / ROSH / UL / SASO certificate
6. Top panel color is available with black, silver
Specification:
Item No. | BC071 | Type | Tabletop flip up socket box |
Style | slip up pulling cable cubby | Available color | Black (silver is available) |
Material | Aluminum alloy brushed finish | Panel corner | Round corner |
Panel process | Anode oxidation anti-rust process | Panel thickness | 5mm |
Usage | Commercial | Application | Office high-class table, hotel room |
Panel size | 190mm * 130mm | Box size | 164mm * 92mm * 80mm |
Cutout size | 165mm * 93mm | Grounding | Standard grounding |
Cable length | 1500mm | Rated voltage | 110V ~ 240V AC |
Rated current | 10 ~ 13 Amp | Frequency | 50 / 60 Hz |
Cable plugs | Male / female | Operation Temp. | -20°C / + 50°C |
Power outlets | 2* Universal standard power | Configuration | Lan, HDMI, VGA, USB, 3.5 Audio |
Certificate | CE approved | OEM / ODM | Available |
Package | 6 units/ctn | Warranty | 1 year |
Application:
This tabletop manual flip up socket is multiple used in the high-class office table, conference room table, school lecture hall, office / school training room, hotel and the AV equipment room.
How to install and operation:
1. Cut out a properly square hole on the table;
2. Put the socket into the square hole, the connction cable hidden under the table;
3. Manual slip down the aluminum alloy conver panel and pulling up
and connected all cables when using;
4. Pulling out all connection cable plugs and slip cover the
surface panel
Customized selection modular:
VGA / HDMI / USB data / USB charger / Network RJ45 / Telephone RJ11 / 3.5 Audio
Dual 3.5 Audio / Power switch / 6.35 speaker / Video / Dual Audio / Microphone Canon
Universal plug / Eurpe standard plug (EU) / British standard plug (UK) / American standard plug (US)
Australia standard plug (AU) / South Africa standard plug (SA) / France plug / German plug
Italy plug / Chile plug or other plug

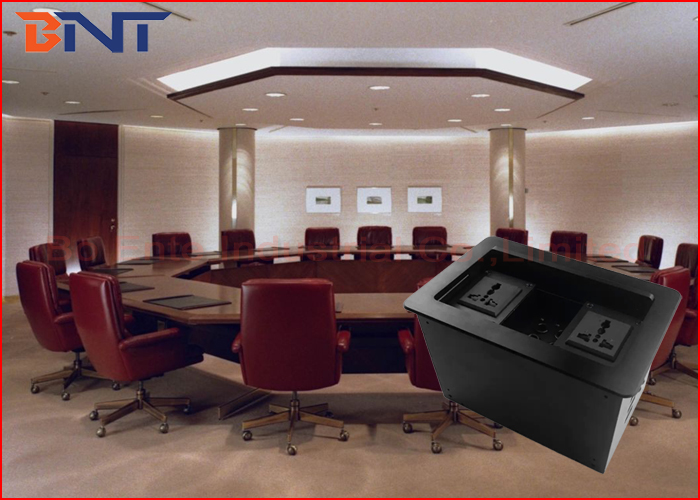

Product Pictures:
![]() |
