    Office Hidden Conference Table Socket , Silver 3 Table Top Universal Power Plug

    High-tier Office Tabletop Hidden Rotating Power Socket 3 Universal Oultets


    Introduction:

    EK Series rotatable tabletop socket is mainly used in advanced office, hotel and home, training room, lecture room. Tabletop socket could be used with other installation surrounding together. When power with the desktop power socket, the indicator light is power on, product come to working station. Press the up/ down switch, all the multi-functional sockets could be rotate 180 degree to whatever position as needed. All configuration on desktop socket could be hidden under table if unused and would be rotating into the tabletop by automatically.


    Feature:

    1. High quality 3mm panel thickness aluminum panel surface, not easy to bend

    2. Aluminum alloy wired drawing top panel, elegant fashion, simple appearance not easy to grind flower

    3. Anode oxidation process, anti-scratch, anti-dusty and anti-rust, upscale elegance

    4. Anti-pinch function, when the tabletop socket is turning, if there is something come and stay on the connector, the socket will turn back to the last position.

    5. Easy installation, just cut out a square hole and install the socket on the table directly.

    6. Safety design, anti-electric shock when the connection panel hidden under table after used.

    7. With 1.5 meter extension connection cables

    8. Save more space,after using you can close it with the button on panel to keep it anti-dusty, and the table tiny.

    9. With quiet synchronous motor, panel socket can be rotating automatically via switch control.


    Selling Points:

    1. USB charger system can be support with different input voltage and output charging current

    2. Cable length are available with different length to 1.0m ~ 5m

    3. Cable connection plugs can be changed with different standard

    4. Changeable combinations, modules can be customized as you need accordingly

    5. Interconnection box length can be available with difference quantities modules

    6. Sample order and customized made is available

    7. OEM/ODM and logo request is available

    8. With CE / ROSH / UL / SASO approved


    Application:

    This tabletop hidden rotatable power socket is widely used for the high-class chairman room table, high-tier office table, conference room table AV solution, hotel room and work training room.


    Specification:

    TypeTabletop socket
    Module numberEK6330
    FunctionsTabletop hidden motorized rotation socket
    UsageHigh-tier office, conference room
    ApplicationResidential / General-purpose
    GroudingStandard grounding
    Configuration3* Universal power outlets
    MaterialAluminum alloy surface panel + plastic
    Panel processAluminum alloy wired drawing + anode oxidation surface process
    Overturn angle180 degree
    ColorSilver (black is available)
    Panel size324*110 mm
    Panel thickness3 mm
    Cutout size295*104 mm
    Box size291*100*103 mm
    Cable length1.5 m (Length is available)
    Configuration3* Universal power outlets
    Power connectionUniversal power plug
    Rated voltage110V ~ 240V AC
    Rated current10 ~ 13 Amp
    Frequency50 / 60 Hz
    Operation Temperature-20°C / + 50°C
    Connection portsFemale
    G. Weight2.2 kgs
    Package8 units/carton
    Packing dimension48*68*36 cm/ctn
    Packing weight18 kgs/ctn
    OEM/ODMYes
    Warranty12 month

    Configuration selections


    VGA / HDMI / USB date / USB charger / Audio / Video / RCA

    Network / Telephone / Microphone / Cat6 / XLR

    Universal plug / EU standard plug / UK standard plug

    AU standard plug / US standard plug / SA standard plug


    How to install and operation:

    1. Cut out a properly square hole on the table;

    2. Put the socket into the square hole, the connction cable hidden under the table;

    3. The indicator light is illuminated when product power up;
    4. Press the green touch button if use, the product will rotate 180 degree to the desktop.

    5. Press the red touch button if unused, the product will rotate 180 degrees to the hidden position.


    Pictures:

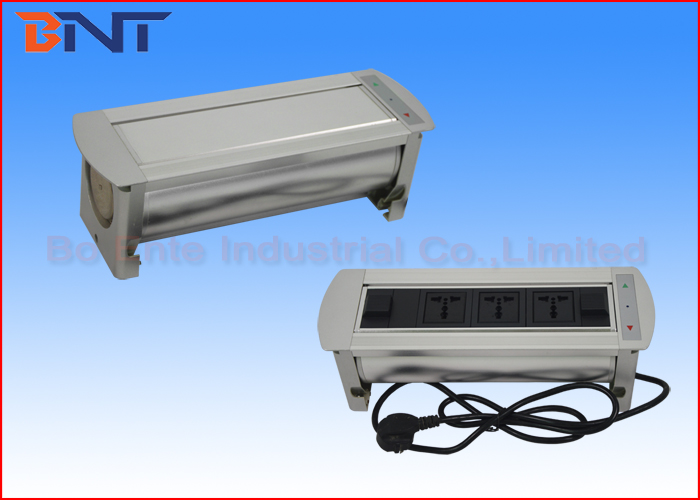

    Quality Office Hidden Conference Table Socket , Silver 3 Table Top Universal Power Plug for sale
