Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45

Guangzhou Boente Technology Co., Ltd (Bo Ente Industrial Co., Limited)
Contact Now
    Buy cheap Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45 from wholesalers

    Buy cheap Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45 from wholesalers
    • Buy cheap Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45 from wholesalers
    • Buy cheap Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45 from wholesalers

    Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45

    Ask Lasest Price
    Brand Name : Boente
    Model Number : BD613-1S
    Certification : CE/RoHS/UL/3C/SASO
    Price : Negotiate
    Payment Terms : T/T, L/C,T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 10000 units per month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45


    Rectangle Press Button Tabletop Hidden Pop Up Power Socket With HDMI / RJ45


    Introduction:


    Multi-functional Conference pop up socket, a multi-function socket of the modern office. Mainly used in high-grade Office, small and large conference rooms, multimedia room, movie screening room, training room and other places, is a specialized use in multimedia presentations of the outlet.
    Desk hidden socket offer a hidden equipment for audio video solution in office furniture. Could save more space and keep table integral and conforming. To supply a fashion and modern environment for office and meeting room.
    This outlet is mainly installed in a desktop or Office of the Conference on the desktop, compact appearance. Space is the most important feature, which Sockets hidden in the table above, retaining surface Panel, power supply and all the multimedia interface are hidden in the box. Users only need to use, press the buttons on the Panel, interface panel from the inside of the box pops up, and horizontal stroke 45 degree angle, user patch panel interfaces can be; use only light pressure panels on the surface after used, the panels can be hidden under the table.
    Our BD610-2S is a specifically designed office socket for the European market. It contained with 3 ways French standard / German standard outlets and a 2 meter length, 2.5 mm 16A copper core power cable. And European standard power plugs.


    Feature:

    1, Easy to install, just open the suitable size for your desktop openings, you can put the socket into the hole and fixed it via the screws on the tables.
    2, The operation is simple, just press the pop-up button on the surface panel board, then the connected socket plate will be pop out and you can use directly.
    3, The socket normally hidden at the bottom of the table, so that desktop more clean, modern and save space.
    4, After used, easy to press the pop out plate and let it closs to the socket box, the plate will be lock itself.
    5, Provide a stylish and modern environment for offices and conference rooms.
    6, The panel is made of zinc alloy material and has beautiful appearance. Matte finish, not easy to scratched.
    7, Rectangular high hardness and 3mm thick surface panel, not easy to scratch and bending.
    8, The socket box is assembled with power sockets, data, HDMI, VGA, USB, audio and video connectors. Each configuration can be changed as needed.

    9, Supply with 2 meter length power cable plugs, the cable is made with copper core is 2.5 mm diameter, can support the 16~25 Amp.


    Parameter:

    Product nameDesktop Hidden Pop Up Socket
    Model numberBD613-1S
    MaterialZinc alloy dull polish
    Panel size265 * 130 mm
    Case size222 * 109 * 65 mm
    Surface thickness3mm
    Cutout size224 * 110 mm
    Panel cornerRectangle
    Button typeRectangular Press Button
    ColorBlack
    Power2* French standard power outlets
    DesignReplaceable module design
    Configuration2* Network (RJ45) + 1* USB data
    Cable Length2 meter
    Cable coreHigh quality copper core
    Core diameter2.5 mm

    Application

    High-class office conference table
    Rated voltage110 ~ 240 VAC
    Rated current16 A
    Rated power5000 W
    Differnece moduleYes, supply with difference module as need
    Power PlugEuropean standard power plugs
    OEM / ODMYes
    Packing10 PCS / CTN

    Cautions:
    Not to destroy any attachments and connection cables.
    Panels should be installed by professionals.
    The sharp edges of the Panel carefully in order to avoid any possible damage to the cutting.
    Kept dry, ventilated and avoid damp, dust and heat.
    Check it carefully before installing the power supply voltage and frequency.
    Before cleaning the power socket, be sure to turn off the power.

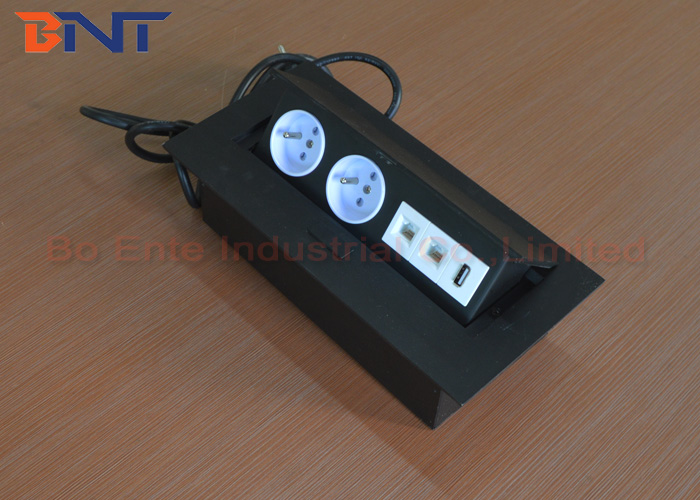

    Product Pictures:
