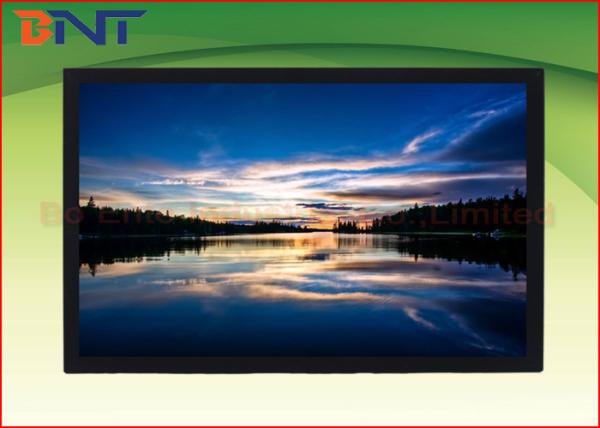

Wall Mount Transparent Rear Projection Projector Screen Conference Room Fixed Frame Screen

Introduction:
Fixed frame screen, one of modern office/home design projection furniture. Seamless ladder type dust-proof design, remove the worries after use; unique patented design of fixed curtain by displacement type fixed structure, and more convenient; the unique design of the sliding type installation structure, saving time and effort. Highlight the flavor of the times, the appearance of simple and elegant fashion generous. It most popular in the home theater, high-tier office, collage lecture hall and profession cinema etc..

Feature:
1. Self-developed frame shape,half semi-arc design, avoiding around the ambiguous problem during projection process.
2. Frame size can be choose 80mm or 100mm, Aluminum alloy frame case thickness 30mm, aluminum alloy panel thickness 2mm.
3. Frame is made of aluminum alloy material, through 500kg alignment,then through 1000 degree high temperature molding.
4. Stick velvet on the frame surface, you can choose black or white color.
5. Four side embedded-in-one installation,ensure around uniform force,effective eliminate the traditional screen surface's "V" type & water ripple, prefect screen present flat-panel like mirror
6. Suitable used for different place,such as high quality home theater, government agency, professional cinema etc.
7. Anti UV, anti-static, clean, damp proof, flame retardant, use for a long time aging, non-stick ash.
8. The surface of the frame is made of black velvet, have a fashion beautiful appearance.
9. The screen fabric is made of high-tension soft PVC fabric, have a great look.
10. According to the projection way, supply with different screen fabric, front screen, rear screen, 3D screen and sound through screen.
11. The fabric of projection screen is using high-tension pearl white PVC material, have a very good touch and elasticity, not easy to broken.
12. Using many high quality drag springs to pull the screen up, make the surface softy and smoothly.
13. Upper and lower using the aluminum mount plate to fixed the screen up. Easy to install and unstall.
14. Frame corner using the 45 degree design, make the corner connected together compact.
15. The frame corner connector using 8 pcs M5 screws to fixed, make the frame connected more safety.
Content and accessories list:

Specification:
Items: BETFS9-100
Style: Fixed frame screen
Function: Wall mount projection
Projection way: Rear projection
Application: Conference room
Size: 100 inch
Ratio: 16 : 9
Projection area (inch): 87 * 49
Projection area (mm): 2215 * 1246
Screen fabric: High-tension transparent soft PVC fabric
Frame material: Aluminum alloy
Frame size: 80 * 30 mm
Frame thickness: 2mm
Surface treatment: Soft velvet
Frame color: Black


Projection Way:
Correct use of the projection screen will ensure better results.
For the front projection assemble and view the screen as indicated in Fig.1.
For the rear projection assemble and view the screen as indicated in Fig.2.


Other size selection :

Product Pictures:
